ISL78301FVEAZ-T7A

In Stock: 4

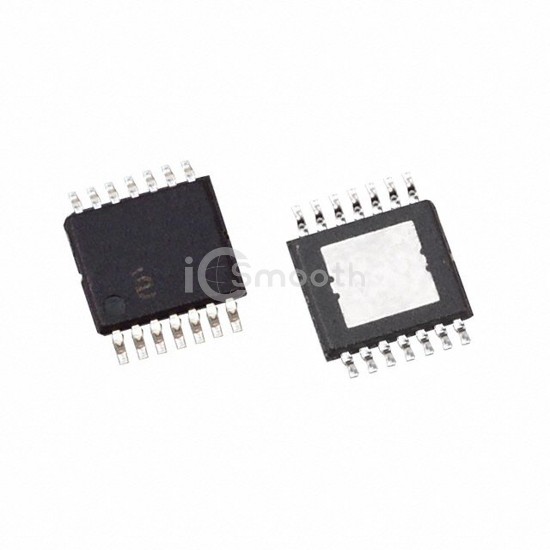

ISL78301FVEAZ-T7A - Renesas Electronics America Inc - PMIC - Voltage Regulators - Linear
REF: ISL78301FVEAZ-T7A Renesas Electronics America Inc
ISL78301FVEAZ-T7A

Renesas Electronics America Inc

IC REG LIN 3.3V 150MA 14HTSSOP

ISL78301FVEAZ-T7A is a PMIC - Voltage Regulators - Linear manufactured by Renesas Electronics America Inc. IC REG LIN 3.3V 150MA 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 142 µA.

Datasheet Request a Quote

In Stock: 4

Tiered Pricing USD
1+ $2.7500 —
10+ $2.0510 -25%
25+ $1.8760 -32%
100+ $1.6842 -39% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)3.3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.525V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)28 µA
Current - Supply (Max)142 µA
PSRR55dB (100Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package14-HTSSOP
