Name: ISL78301FVEAZ
Brand: Renesas Electronics America Inc
SKU: ISL78301FVEAZ
Price: 2.51 USD
Availability: InStock

REF: ISL78301FVEAZ Renesas Electronics America Inc

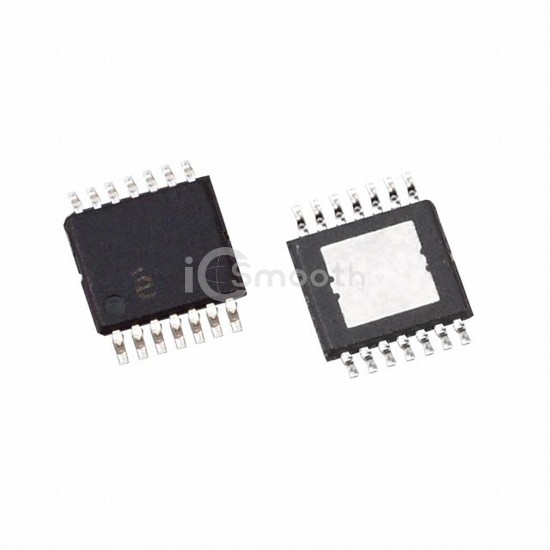

ISL78301FVEAZ

Renesas Electronics America Inc

IC REG LIN 3.3V 150MA 14HTSSOP

ISL78301FVEAZ is a PMIC - Voltage Regulators - Linear manufactured by Renesas Electronics America Inc. IC REG LIN 3.3V 150MA 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply (max) 142 µA.

Datasheet Request a Quote

In Stock: 4,408

Tiered Pricing USD

1+ $2.5100 —

10+ $1.8700 -25%

25+ $1.7084 -32%

100+ $1.5312 -39%

250+ $1.4467 -42%

960+ $1.3561 -46%

1,920+ $1.3212 -47%

2,880+ $1.3037 -48%

5,760+ $1.2781 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.525V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	28 µA
Current - Supply (Max)	142 µA
PSRR	55dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
