Name: ISL78220ANEZ
Brand: Renesas Electronics America Inc
SKU: ISL78220ANEZ
Price: 6.91 USD
Availability: InStock

REF: ISL78220ANEZ Renesas Electronics America Inc

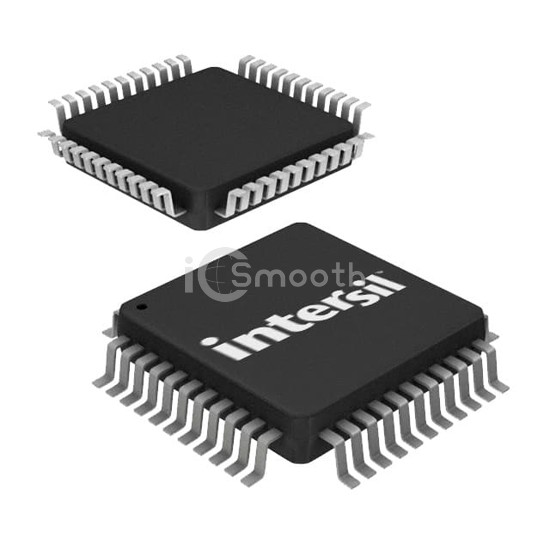

ISL78220ANEZ

Renesas Electronics America Inc

IC REG CTRLR BOOST 44TQFP

ISL78220ANEZ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BOOST 44TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 44-QFP.

Datasheet Request a Quote

In Stock: 6,692

Tiered Pricing USD

1+ $6.9100 —

10+ $5.3210 -23%

25+ $4.9248 -29% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM Signal
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Number of Outputs	6
Output Phases	6
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V
Frequency - Switching	75kHz ~ 1MHz

Duty Cycle (Max)	91.7%
Synchronous Rectifier	-
Clock Sync	Yes
Serial Interfaces	-
Control Features	Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	44-QFP
Supplier Device Package	44-MQFP (10x10)
