Name: ISL6754AAZA
Brand: Renesas Electronics America Inc
SKU: ISL6754AAZA
Availability: InStock

REF: ISL6754AAZA Renesas Electronics America Inc

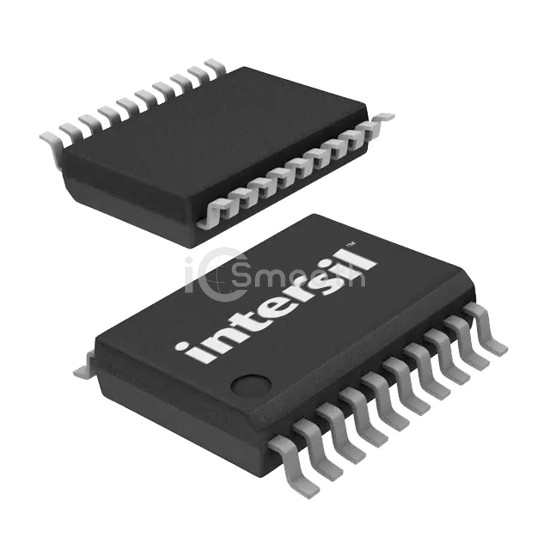

ISL6754AAZA

IC REG CTRLR FULL-BRIDGE 20QSOP

ISL6754AAZA is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR FULL-BRIDGE 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 9V ~ 16V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,651

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Full-Bridge
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	9V ~ 16V
Frequency - Switching	Up to 2MHz

Duty Cycle (Max)	99%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Frequency Control, Ramp, Soft Start
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
