Name: ISL6569CRZ-T
Brand: Renesas Electronics America Inc
SKU: ISL6569CRZ-T
Availability: InStock

REF: ISL6569CRZ-T Renesas Electronics America Inc

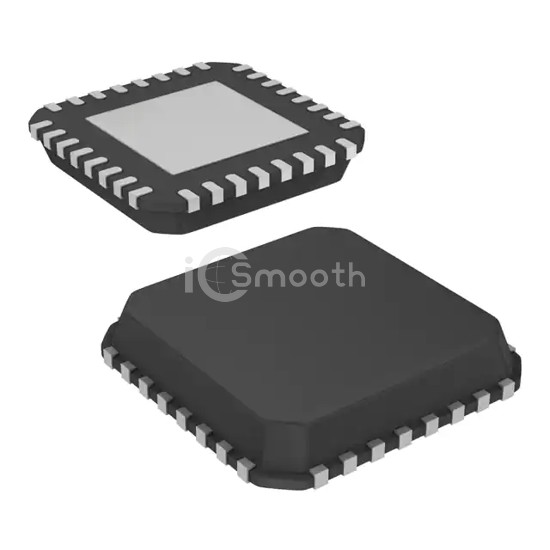

ISL6569CRZ-T

IC REG CTRLR BUCK 32QFN

ISL6569CRZ-T is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 32QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,173

Specifications

18 parameters

Product Status	Obsolete
Output Type	PWM Signal
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V
Frequency - Switching	80kHz ~ 1MHz

Duty Cycle (Max)	75%
Synchronous Rectifier	-
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)
