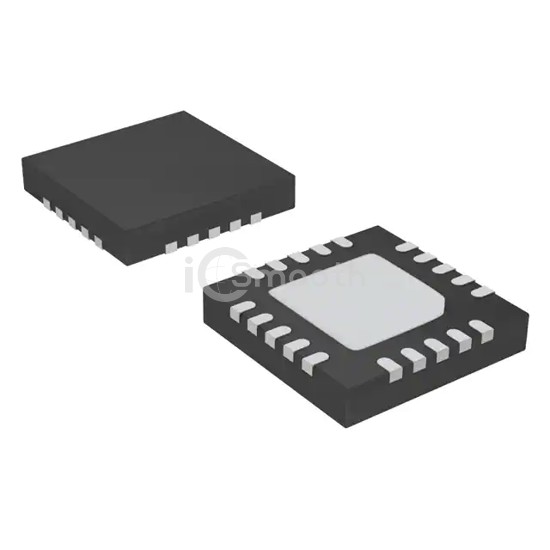

Name: ISL6420BIRZ-TK
Brand: Renesas Electronics America Inc
SKU: ISL6420BIRZ-TK
Price: 4.36 USD
Availability: InStock

REF: ISL6420BIRZ-TK Renesas Electronics America Inc

ISL6420BIRZ-TK

Renesas Electronics America Inc

IC REG CTRLR BUCK 20QFN

ISL6420BIRZ-TK is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 5.6V ~ 28V, package / case 20-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,699

Tiered Pricing USD

1+ $4.3600 —

10+ $3.3100 -24%

25+ $3.0460 -30%

100+ $2.7561 -37%

250+ $2.6179 -40%

500+ $2.5345 -42% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	5.6V ~ 28V
Frequency - Switching	100kHz ~ 1.4MHz

Duty Cycle (Max)	96%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Frequency Control, Phase Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
