Name: ISL28617FVZ-T7A
Brand: Renesas Electronics America Inc
SKU: ISL28617FVZ-T7A
Availability: InStock

REF: ISL28617FVZ-T7A Renesas Electronics America Inc

ISL28617FVZ-T7A

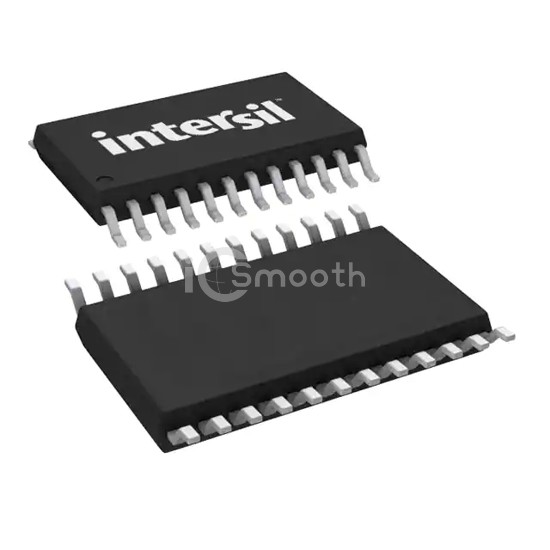

IC INST AMP 1 CIRCUIT 24TSSOP

ISL28617FVZ-T7A is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC INST AMP 1 CIRCUIT 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-TSSOP (0.173", 4.40mm Width), current - supply 2.05mA.

Datasheet Request a Quote

In Stock: 2,324

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Instrumentation
Number of Circuits	1
Output Type	Differential, Rail-to-Rail
Slew Rate	4V/µs
Gain Bandwidth Product	-
-3db Bandwidth	5.5 MHz
Current - Input Bias	200 pA
Voltage - Input Offset	30 µV

Current - Supply	2.05mA
Current - Output / Channel	45 mA
Voltage - Supply Span (Min)	8 V
Voltage - Supply Span (Max)	40 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
