Name: ISL28133FRUZ-T7
Brand: Renesas Electronics America Inc
SKU: ISL28133FRUZ-T7
Availability: InStock

REF: ISL28133FRUZ-T7 Renesas Electronics America Inc

ISL28133FRUZ-T7

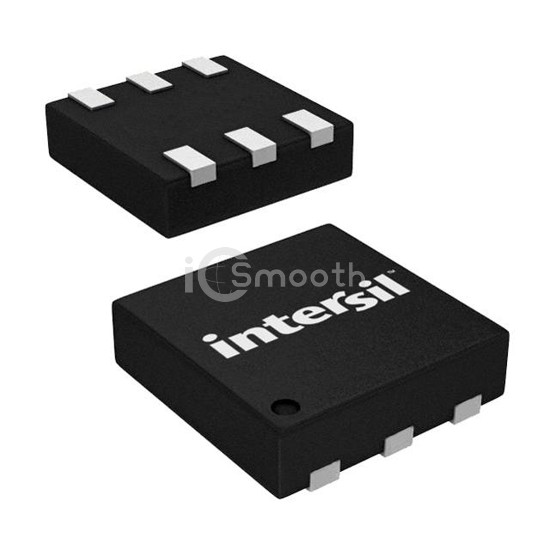

IC OPAMP ZERO-DRIFT 1CIRC 6UTDFN

ISL28133FRUZ-T7 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC OPAMP ZERO-DRIFT 1CIRC 6UTDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-UFDFN, current - supply 18µA.

Datasheet Request a Quote

In Stock: 4,617

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Zero-Drift
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	0.2V/µs
Gain Bandwidth Product	400 kHz
-3db Bandwidth	-
Current - Input Bias	30 pA
Voltage - Input Offset	2 µV

Current - Supply	18µA
Current - Output / Channel	26 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-UTDFN (1.6x1.6)
