Name: ISL2101AAR3Z
Brand: Renesas Electronics America Inc
SKU: ISL2101AAR3Z
Price: 4.72 USD
Availability: InStock

REF: ISL2101AAR3Z Renesas Electronics America Inc

ISL2101AAR3Z

Renesas Electronics America Inc

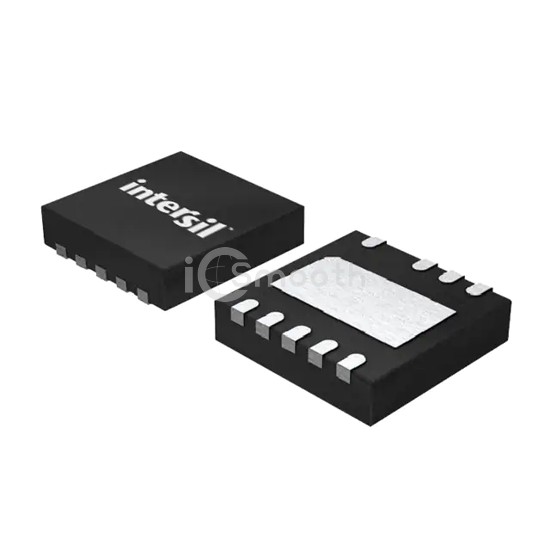

IC GATE DRVR HALF-BRIDGE 9DFN

ISL2101AAR3Z is a PMIC - Gate Drivers manufactured by Renesas Electronics America Inc. IC GATE DRVR HALF-BRIDGE 9DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 9-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,694

Tiered Pricing USD

1+ $4.7200 —

10+ $3.5890 -24%

25+ $3.3060 -30%

100+ $2.9951 -37%

490+ $2.7600 -42%

980+ $2.6860 -43%

1,470+ $2.6490 -44%

2,940+ $2.5947 -45% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	9V ~ 14V
Logic Voltage - VIL, VIH	1.4V, 2.2V
Current - Peak Output (Source, Sink)	2A, 2A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	114 V
Rise / Fall Time (Typ)	10ns, 10ns
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	9-VFDFN Exposed Pad
Supplier Device Package	9-DFN-EP (3x3)
