Name: HA1-5320-2
Brand: Renesas Electronics America Inc
SKU: HA1-5320-2
Availability: InStock

REF: HA1-5320-2 Renesas Electronics America Inc

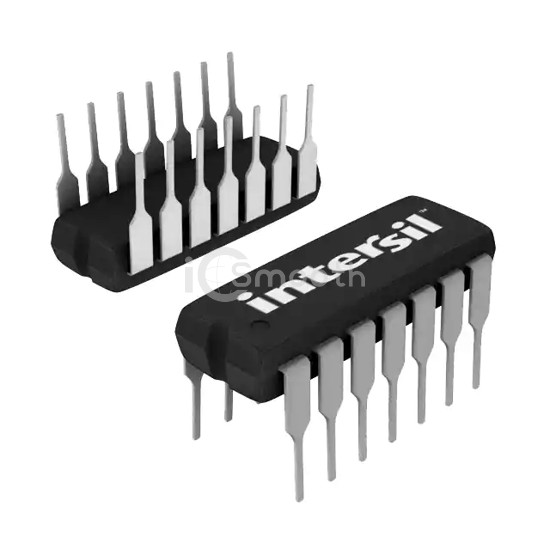

HA1-5320-2

IC SAMPL/HOLD 1 CIRCUIT 14CERDIP

HA1-5320-2 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC SAMPL/HOLD 1 CIRCUIT 14CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 14-CDIP (0.300", 7.62mm), current - supply 11mA.

Datasheet Request a Quote

In Stock: 2,437

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Sample and Hold
Number of Circuits	1
Output Type	-
Slew Rate	45V/µs
Gain Bandwidth Product	2 MHz
-3db Bandwidth	-
Current - Input Bias	70 nA
Voltage - Input Offset	200 µV

Current - Supply	11mA
Current - Output / Channel	10 mA
Voltage - Supply Span (Min)	27 V
Voltage - Supply Span (Max)	40 V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	14-CDIP (0.300", 7.62mm)
Supplier Device Package	14-CERDIP
