Name: EL9214IREZ-T7
Brand: Renesas Electronics America Inc
SKU: EL9214IREZ-T7
Availability: InStock

REF: EL9214IREZ-T7 Renesas Electronics America Inc

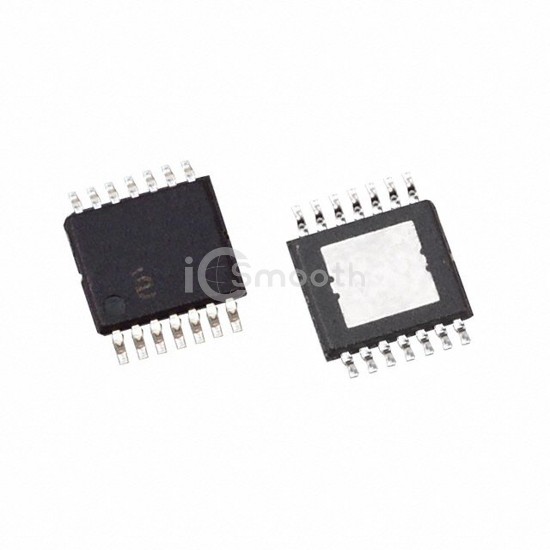

EL9214IREZ-T7

IC OPAMP GP 4 CIRCUIT 14HTSSOP

EL9214IREZ-T7 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC OPAMP GP 4 CIRCUIT 14HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - supply 8.8mA (x4 Channels).

Datasheet Request a Quote

In Stock: 9,379

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	Rail-to-Rail
Slew Rate	115V/µs
Gain Bandwidth Product	63 MHz
-3db Bandwidth	130 MHz
Current - Input Bias	1.4 µA
Voltage - Input Offset	1 mV

Current - Supply	8.8mA (x4 Channels)
Current - Output / Channel	300 mA
Voltage - Supply Span (Min)	5 V
Voltage - Supply Span (Max)	13.5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
