Name: EL5423CL-T7
Brand: Renesas Electronics America Inc
SKU: EL5423CL-T7
Availability: InStock

REF: EL5423CL-T7 Renesas Electronics America Inc

EL5423CL-T7

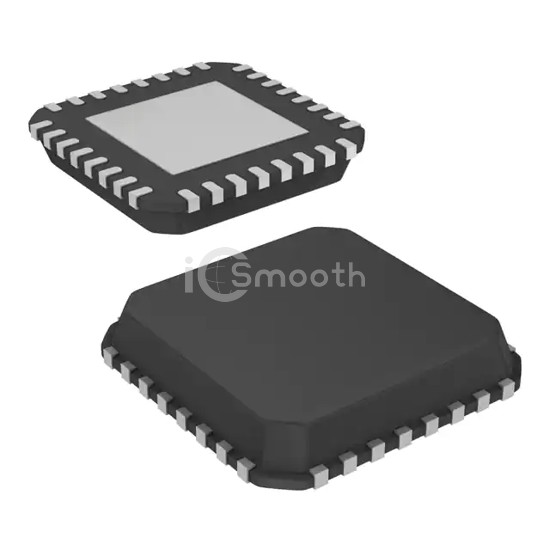

IC BUFFER 12 CIRCUIT 32QFN

EL5423CL-T7 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC BUFFER 12 CIRCUIT 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 32-VFQFN Exposed Pad, current - supply 7.8mA (x12 Channels).

Datasheet Request a Quote

In Stock: 4,505

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Buffer
Number of Circuits	12
Output Type	Rail-to-Rail
Slew Rate	18V/µs
Gain Bandwidth Product	-
-3db Bandwidth	12 MHz
Current - Input Bias	2 nA
Voltage - Input Offset	500 µV

Current - Supply	7.8mA (x12 Channels)
Current - Output / Channel	200 mA
Voltage - Supply Span (Min)	4.5 V
Voltage - Supply Span (Max)	16.5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-QFN (5x6)
