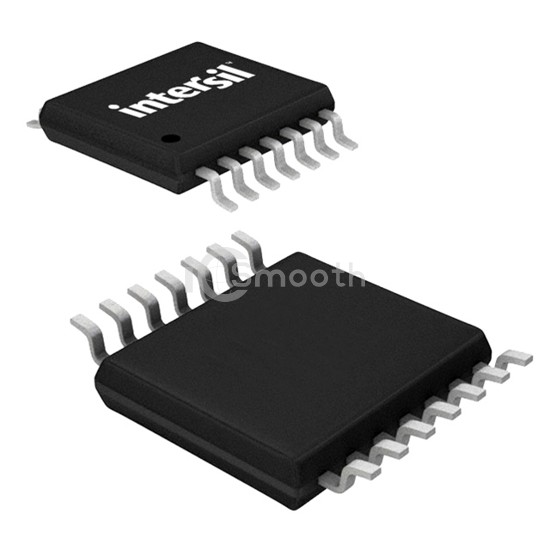

EL5420CRZ

In Stock: 1,717
EL5420CRZ - Renesas Electronics America Inc - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: EL5420CRZ Renesas Electronics America Inc
EL5420CRZ

Renesas Electronics America Inc

IC OPAMP VFB 4 CIRCUIT 14TSSOP

EL5420CRZ is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC OPAMP VFB 4 CIRCUIT 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-TSSOP (0.173", 4.40mm Width), current - supply 500µA (x4 Channels).

Datasheet Request a Quote

In Stock: 1,717

Specifications

17 parameters
Product StatusActive
Amplifier TypeVoltage Feedback
Number of Circuits4
Output TypeRail-to-Rail
Slew Rate10V/µs
Gain Bandwidth Product8 MHz
-3db Bandwidth12 MHz
Current - Input Bias2 nA
Voltage - Input Offset2 mV
Current - Supply500µA (x4 Channels)
Current - Output / Channel30 mA
Voltage - Supply Span (Min)4.5 V
Voltage - Supply Span (Max)16.5 V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package14-TSSOP
