Name: EL5372IU-T13
Brand: Renesas Electronics America Inc
SKU: EL5372IU-T13
Availability: InStock

REF: EL5372IU-T13 Renesas Electronics America Inc

EL5372IU-T13

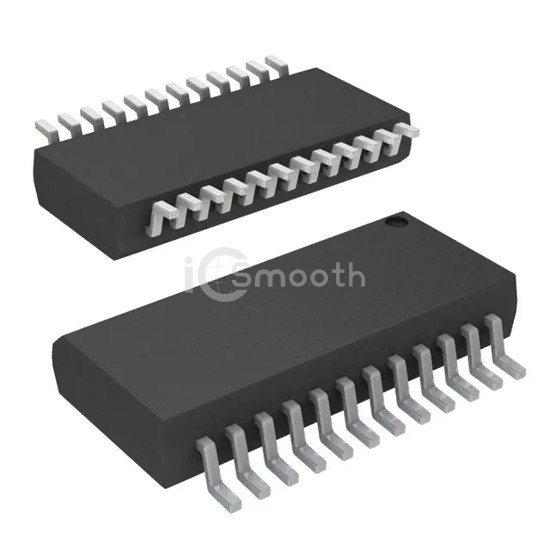

IC OPAMP DIFF 3 CIRCUIT 24QSOP

EL5372IU-T13 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC OPAMP DIFF 3 CIRCUIT 24QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 24-SSOP (0.154", 3.90mm Width), current - supply 5.6mA (x3 Channels).

Request a Quote

In Stock: 3,707

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Differential
Number of Circuits	3
Output Type	Differential
Slew Rate	700V/µs
Gain Bandwidth Product	100 MHz
-3db Bandwidth	250 MHz
Current - Input Bias	6 µA
Voltage - Input Offset	7 mV

Current - Supply	5.6mA (x3 Channels)
Current - Output / Channel	95 mA
Voltage - Supply Span (Min)	4.75 V
Voltage - Supply Span (Max)	11 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
