Name: EL5220TILZ-T13
Brand: Renesas Electronics America Inc
SKU: EL5220TILZ-T13
Availability: InStock

REF: EL5220TILZ-T13 Renesas Electronics America Inc

EL5220TILZ-T13

IC VOLTAGE FEEDBACK 2 CIRC 8DFN

EL5220TILZ-T13 is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Renesas Electronics America Inc. IC VOLTAGE FEEDBACK 2 CIRC 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-VFDFN Exposed Pad, current - supply 550µA (x2 Channels).

Datasheet Request a Quote

In Stock: 2,878

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Voltage Feedback
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	12V/µs
Gain Bandwidth Product	8 MHz
-3db Bandwidth	12 MHz
Current - Input Bias	2 nA
Voltage - Input Offset	5 mV

Current - Supply	550µA (x2 Channels)
Current - Output / Channel	65 mA
Voltage - Supply Span (Min)	4.5 V
Voltage - Supply Span (Max)	19 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount

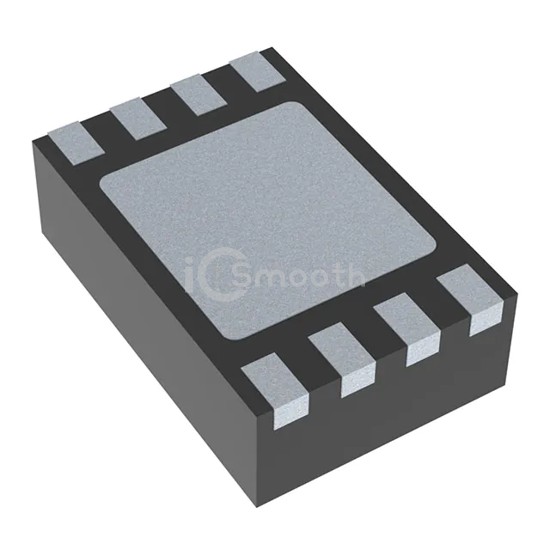

Package / Case	8-VFDFN Exposed Pad
Supplier Device Package	8-DFN (2x3)
