Name: CR5AS-12A#B01
Brand: Renesas Electronics America Inc
SKU: CR5AS-12A#B01
Availability: InStock

REF: CR5AS-12A#B01 Renesas Electronics America Inc

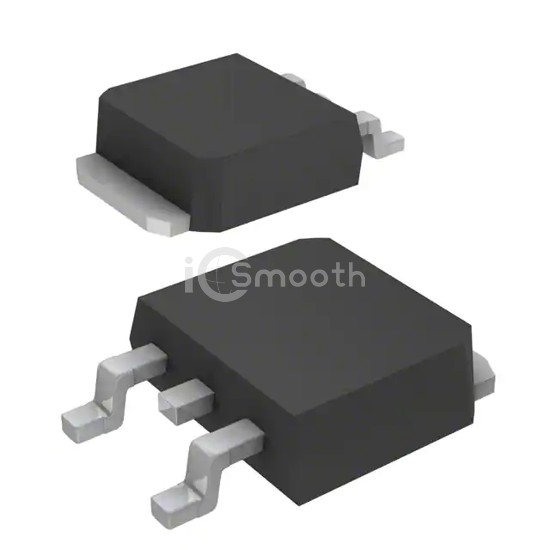

CR5AS-12A#B01

SCR 600V 7.8A MP3A

CR5AS-12A#B01 is a Thyristors - SCRs manufactured by Renesas Electronics America Inc. SCR 600V 7.8A MP3A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 7,767

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	5 A
Current - On State (It (RMS)) (Max)	7.8 A
Current - Hold (Ih) (Max)	3.5 mA

Current - Off State (Max)	1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	90A @ 60Hz
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	MP-3A
