RM40N600T7

In Stock: 1,699

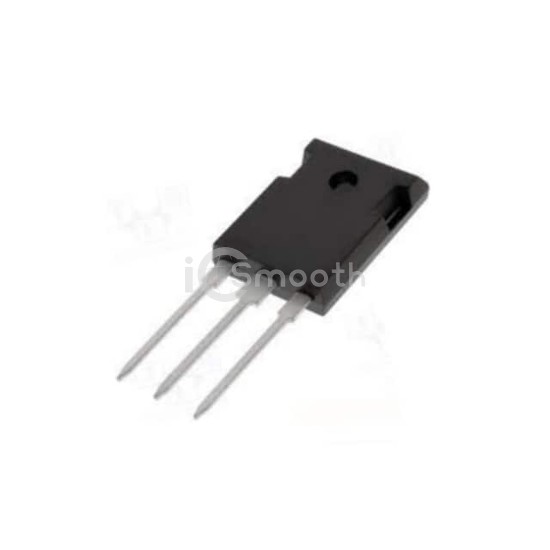

RM40N600T7 - Rectron USA - Transistors - IGBTs - Single
REF: RM40N600T7 Rectron USA
RM40N600T7

Rectron USA

IGBT TRENCH FS 600V 40A TO247-3

RM40N600T7 is a Transistors - IGBTs - Single manufactured by Rectron USA. IGBT TRENCH FS 600V 40A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Request a Quote

In Stock: 1,699

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
Power - Max306 W
Switching Energy1.12mJ (on), 610µJ (off)
Input TypeStandard
Gate Charge149 nC
Td (on/off) @ 25°C21ns/203ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)151 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
