BZT52B22S

In Stock: 1,223

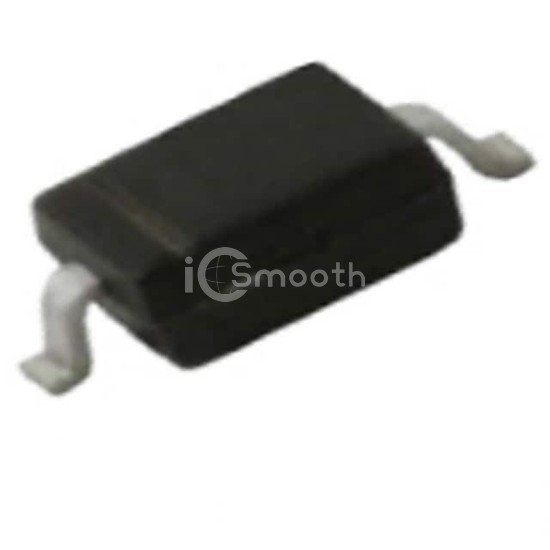

BZT52B22S - Rectron USA - Diodes - Zener - Single
REF: BZT52B22S Rectron USA
BZT52B22S

Rectron USA

DIODE ZENER 22V 500MW SOD-323

BZT52B22S is a Diodes - Zener - Single manufactured by Rectron USA. DIODE ZENER 22V 500MW SOD-323. Key specifications: mounting type Surface Mount, package / case SC-76, SOD-323, power - max 500 mW, tolerance ±2%.

Datasheet Request a Quote

In Stock: 1,223

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±2%
Power - Max500 mW
Impedance (Max) (Zzt)55 Ohms
Current - Reverse Leakage @ Vr100 nA @ 15.4 V
Voltage - Forward (Vf) (Max) @ If900 mV @ 10 mA
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
