RAZFL-504MMCG

In Stock: 18

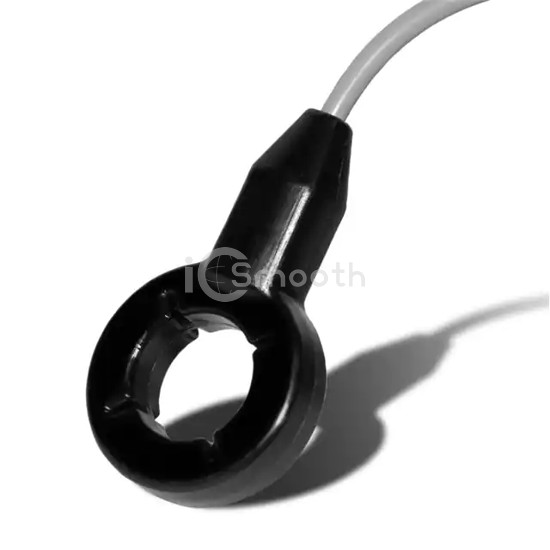

RAZFL-504MMCG - Raztec Sensors - Current Sensors
REF: RAZFL-504MMCG Raztec Sensors
RAZFL-504MMCG

Raztec Sensors

500A MOULDED CURRENT SENSOR

RAZFL-504MMCG is a Current Sensors manufactured by Raztec Sensors. 500A MOULDED CURRENT SENSOR. Key specifications: mounting type Free Hanging, operating temperature -40°C ~ 100°C (TA), voltage - supply 4.5V ~ 5.5V, package / case Ring Lug.

Datasheet Request a Quote

In Stock: 18

Specifications

18 parameters
Product StatusActive
For MeasuringDC
Sensor TypeHall Effect
Current - Sensing500A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity4mV/A
Frequency120kHz
Linearity±0.5%
Accuracy-
Voltage - Supply4.5V ~ 5.5V
Response Time3.7µs
Current - Supply (Max)15mA
Operating Temperature-40°C ~ 100°C (TA)
PolarizationUnidirectional
Mounting TypeFree Hanging
Package / CaseRing Lug
Supplier Device Package-
