QTT0223ST1

In Stock: 2,000

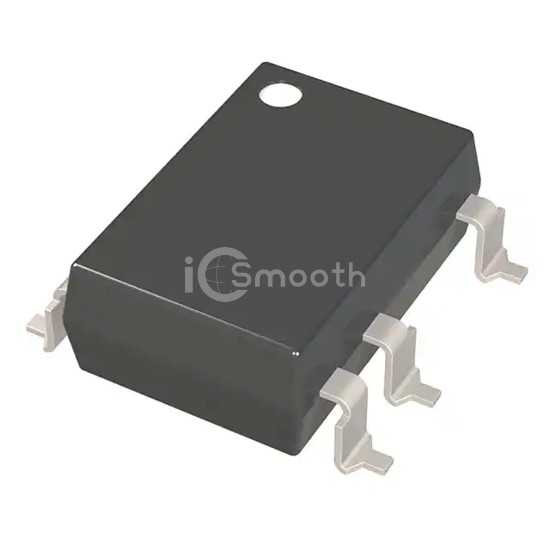

QTT0223ST1 - QT Brightek (QTB) - Optoisolators - Triac, SCR Output
REF: QTT0223ST1 QT Brightek (QTB)
QTT0223ST1

QT Brightek (QTB)

7 PIN RANDOM-PHASE HIGH POWER TR

QTT0223ST1 is a Optoisolators - Triac, SCR Output manufactured by QT Brightek (QTB). 7 PIN RANDOM-PHASE HIGH POWER TR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C, voltage - forward (vf) (typ) 1.3V (Max), package / case 8-SMD (7 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 2,000

Tiered Pricing USD
1+ $2.8200 —
10+ $2.0460 -27%
100+ $1.5863 -44%
500+ $1.3844 -51% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac, Power
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)200V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)300 mA
Current - Hold (Ih)25mA
Turn On Time-
Voltage - Forward (Vf) (Typ)1.3V (Max)
Current - DC Forward (If) (Max)50 mA
Operating Temperature-55°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SMD (7 Leads), Gull Wing
Supplier Device Package7-SMD
Approval AgencyUL, VDE
