Name: QTM453T1
Brand: QT Brightek (QTB)
SKU: QTM453T1
Price: 1.39 USD
Availability: InStock

REF: QTM453T1 QT Brightek (QTB)

QTM453T1

MINI-FLAT PACKAGE 1 MBITS HIGH S

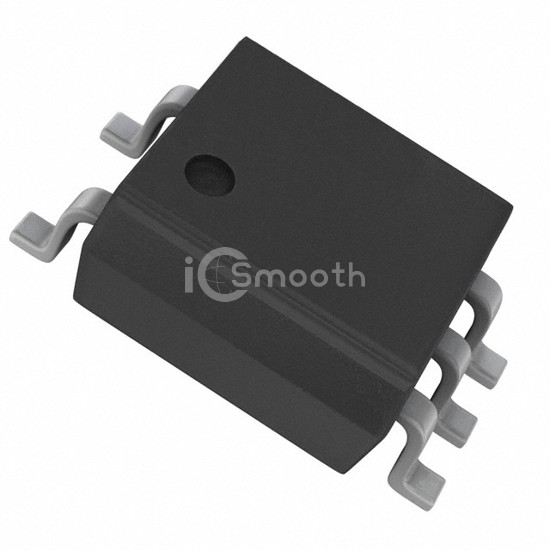

QTM453T1 is a Optoisolators - Transistor, Photovoltaic Output manufactured by QT Brightek (QTB). MINI-FLAT PACKAGE 1 MBITS HIGH S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 9,414

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	20% @ 16mA
Current Transfer Ratio (Max)	50% @ 16mA
Turn On / Turn Off Time (Typ)	350ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-Mini-Flat
