VLA591-01R

In Stock: 8

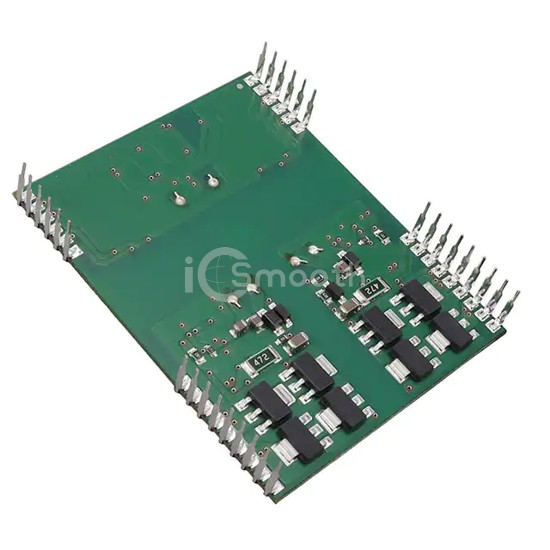

VLA591-01R - Powerex Inc. - PMIC - Gate Drivers
REF: VLA591-01R Powerex Inc.
VLA591-01R

Powerex Inc.

IC GATE DRVR DIP-GAM

VLA591-01R is a PMIC - Gate Drivers manufactured by Powerex Inc.. IC GATE DRVR DIP-GAM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 14.5V ~ 15.5V, package / case 50-DIP Module, 30 Leads.

Datasheet Request a Quote

In Stock: 8

Specifications

15 parameters
Product StatusActive
Driven ConfigurationFull-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT
Voltage - Supply14.5V ~ 15.5V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)20A, 20A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)520ns, 120ns
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case50-DIP Module, 30 Leads
Supplier Device Package-
