VLA504-01

In Stock: 9,578

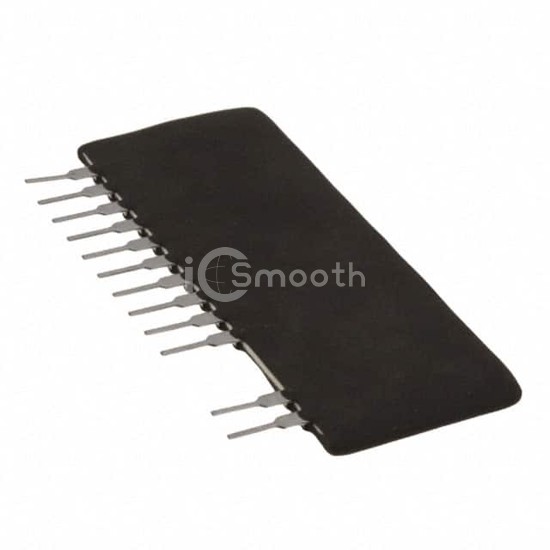

VLA504-01 - Powerex Inc. - PMIC - Gate Drivers
REF: VLA504-01 Powerex Inc.
VLA504-01

Powerex Inc.

IC GATE DRVR HI/LOW SIDE MODULE

VLA504-01 is a PMIC - Gate Drivers manufactured by Powerex Inc.. IC GATE DRVR HI/LOW SIDE MODULE. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C (TA), voltage - supply 14V ~ 15V, package / case 14-SIP Module, 12 Leads.

Datasheet Request a Quote

In Stock: 9,578

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT
Voltage - Supply14V ~ 15V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)3A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)300ns, 300ns
Operating Temperature-20°C ~ 60°C (TA)
Mounting TypeThrough Hole
Package / Case14-SIP Module, 12 Leads
Supplier Device PackageModule
