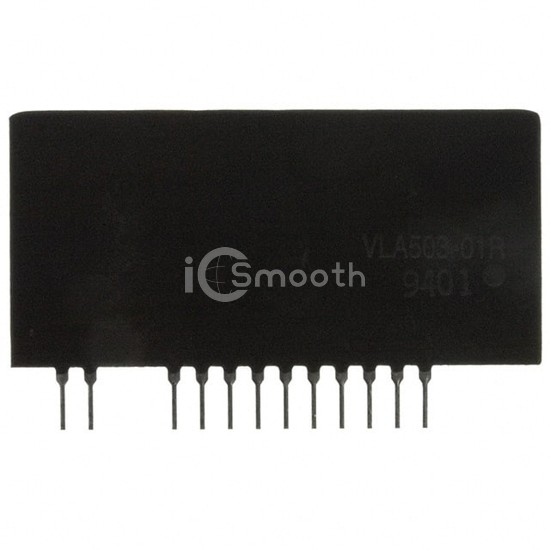

VLA503-01

In Stock: 8,026
VLA503-01 - Powerex Inc. - PMIC - Gate Drivers
REF: VLA503-01 Powerex Inc.
VLA503-01

Powerex Inc.

IC GATE DRVR LOW-SIDE MODULE

VLA503-01 is a PMIC - Gate Drivers manufactured by Powerex Inc.. IC GATE DRVR LOW-SIDE MODULE. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C (TA), voltage - supply 14V ~ 15V, package / case 12-SIP.

Datasheet Request a Quote

In Stock: 8,026

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT
Voltage - Supply14V ~ 15V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)5A, 5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)300ns, 300ns
Operating Temperature-20°C ~ 60°C (TA)
Mounting TypeThrough Hole
Package / Case12-SIP
Supplier Device PackageModule
