Name: C712L
Brand: Powerex Inc.
SKU: C712L
Price: 334.79 USD
Availability: InStock

REF: C712L Powerex Inc.

C712L

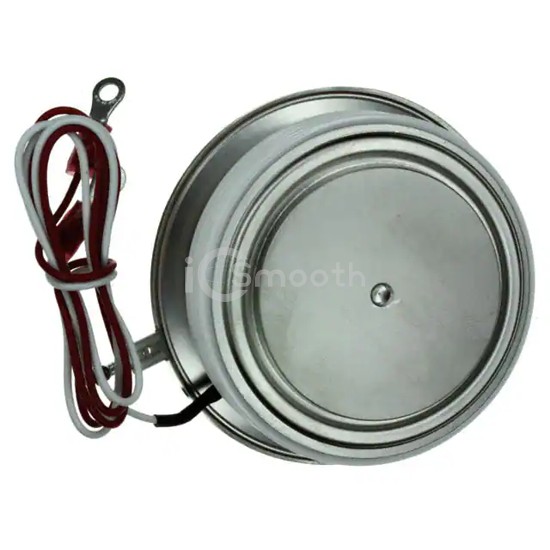

SCR 2KV 1570A PRESS-PAK

C712L is a Thyristors - SCRs manufactured by Powerex Inc.. SCR 2KV 1570A PRESS-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case B-PUK (TO-200AC).

Request a Quote

In Stock: 24

Specifications

15 parameters

Product Status	Active
Voltage - Off State	2 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	120 mA
Voltage - On State (Vtm) (Max)	1.45 V
Current - On State (It (AV)) (Max)	1000 A
Current - On State (It (RMS)) (Max)	1570 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	90 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	18500A, 20000A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	B-PUK (TO-200AC)
Supplier Device Package	Press-Pak (Pow-R-Disc)
