TFS7701H

In Stock: 6,823
TFS7701H - Power Integrations - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: TFS7701H Power Integrations

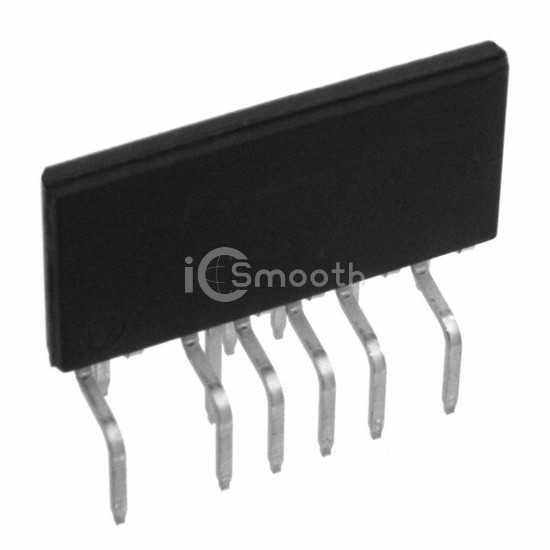

TFS7701H

Power Integrations

IC REG CTRLR MULT TOP ESIP-16F

TFS7701H is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Power Integrations. IC REG CTRLR MULT TOP ESIP-16F. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Up to 11.5V, package / case 16-SSIP, 12 Leads, Exposed Pad, Formed Leads.

Datasheet Request a Quote

In Stock: 6,823

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyFlyback, Forward Converter
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)Up to 11.5V
Frequency - Switching66kHz, 132kHz
Duty Cycle (Max)63%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Reset
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-16F
