TFS758HG

In Stock: 6,254

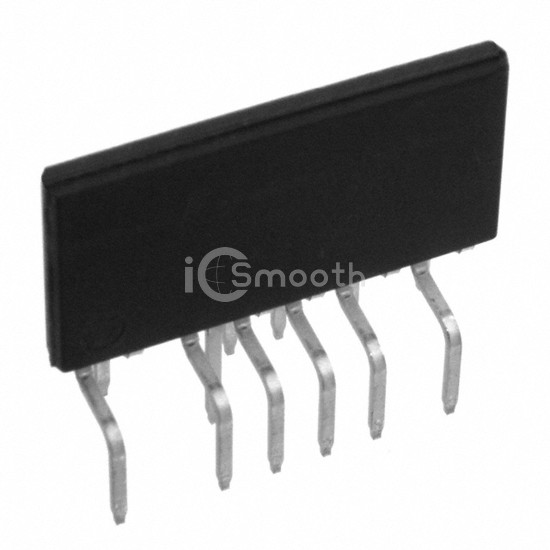

TFS758HG - Power Integrations - PMIC - AC DC Converters, Offline Switchers
REF: TFS758HG Power Integrations
TFS758HG

Power Integrations

IC OFFLIN CONV MULT TOP ESIP-16B

TFS758HG is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLIN CONV MULT TOP ESIP-16B. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 11.1V ~ 13.4V, package / case 16-SSIP, 12 Leads, Exposed Pad, Formed Leads.

Datasheet Request a Quote

In Stock: 6,254

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown530V, 725V
TopologyFlyback, Forward
Voltage - Start Up12.1 V
Voltage - Supply (Vcc/Vdd)11.1V ~ 13.4V
Duty Cycle70%
Frequency - Switching66kHz
Power (Watts)236 W
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit
Control FeaturesEN
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-16B
Mounting TypeThrough Hole
