SID1183K-TL

In Stock: 9,883

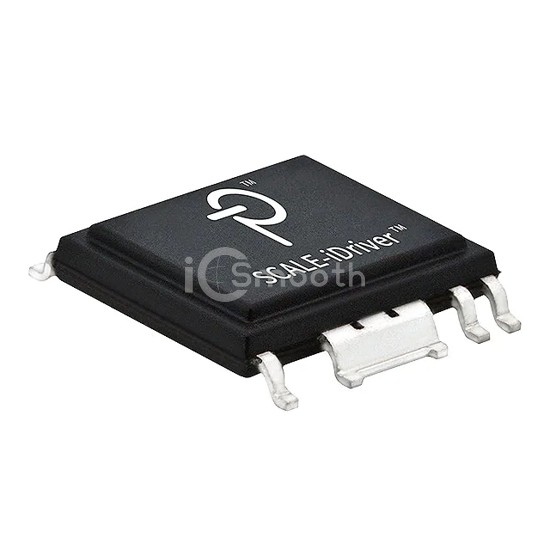

SID1183K-TL - Power Integrations - PMIC - Gate Drivers
REF: SID1183K-TL Power Integrations
SID1183K-TL

Power Integrations

IC GATE DRV HI/LO SIDE ESOP-R16B

SID1183K-TL is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRV HI/LO SIDE ESOP-R16B. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads.

Datasheet Request a Quote

In Stock: 9,883

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSingle
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply4.75V ~ 5.25V
Logic Voltage - VIL, VIH0.5V, 3.3V
Current - Peak Output (Source, Sink)8A, 48A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)465ns, 460ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
