SID1182K

In Stock: 1
SID1182K - Power Integrations - Isolators - Gate Drivers
REF: SID1182K Power Integrations
SID1182K

Power Integrations

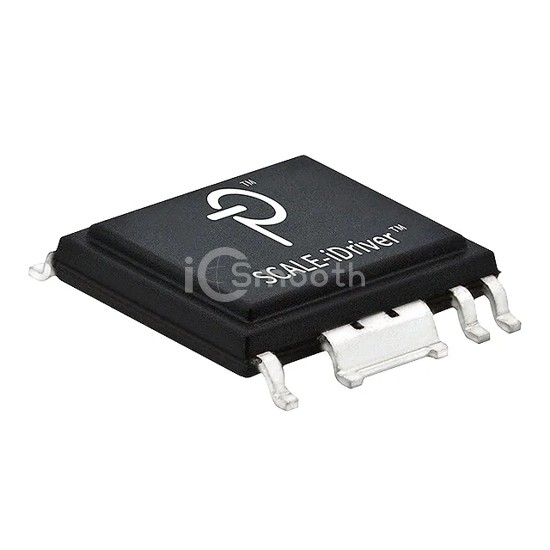

DGTL ISO 5KV GATE DRVR ESOP-R16B

SID1182K is a Isolators - Gate Drivers manufactured by Power Integrations. DGTL ISO 5KV GATE DRVR ESOP-R16B. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads.

Datasheet Request a Quote

In Stock: 1

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)340ns, 330ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)90ns, 81ns
Current - Output High, Low3.6A, 4A
Current - Peak Output8A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply22V ~ 28V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
Approval Agency-
