SID1181KQ

In Stock: 2,067

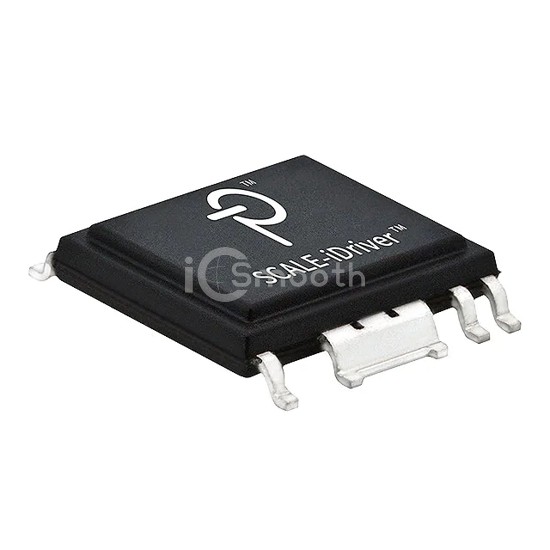

SID1181KQ - Power Integrations - Isolators - Gate Drivers
REF: SID1181KQ Power Integrations
SID1181KQ

Power Integrations

8A 750V ESOP IGBT

SID1181KQ is a Isolators - Gate Drivers manufactured by Power Integrations. 8A 750V ESOP IGBT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads, approval agency CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 2,067

Tiered Pricing USD
1+ $7.9900 —
100+ $7.0290 -12% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)50kV/µs
Propagation Delay tpLH / tpHL (Max)340ns, 330ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)465ns, 460ns
Current - Output High, Low3.6A, 4A
Current - Peak Output8A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply22V ~ 28V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
Approval AgencyCSA, UL, VDE
