SID1132K

In Stock: 500
SID1132K - Power Integrations - Isolators - Gate Drivers
REF: SID1132K Power Integrations
SID1132K

Power Integrations

DGTL ISO 5KV GATE DRVR ESOP-R16B

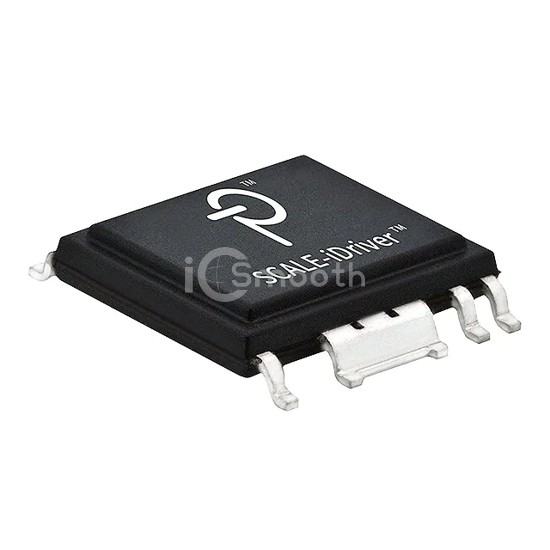

SID1132K is a Isolators - Gate Drivers manufactured by Power Integrations. DGTL ISO 5KV GATE DRVR ESOP-R16B. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads.

Datasheet Request a Quote

In Stock: 500

Tiered Pricing USD
1+ $4.6600 —
100+ $4.1000 -12%
1,000+ $3.5200 -24% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)340ns, 330ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)450ns, 450ns (Max)
Current - Output High, Low1.2A, 1.3A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply22V ~ 28V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
Approval Agency-
