SID1112K

In Stock: 207

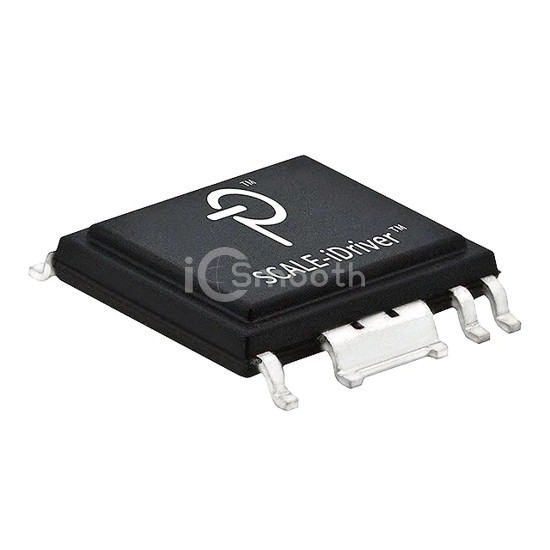

SID1112K - Power Integrations - Isolators - Gate Drivers
REF: SID1112K Power Integrations
SID1112K

Power Integrations

DGTL ISO GATE DRVR

SID1112K is a Isolators - Gate Drivers manufactured by Power Integrations. DGTL ISO GATE DRVR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads, approval agency VDE.

Datasheet Request a Quote

In Stock: 207

Tiered Pricing USD
1+ $4.1900 —
100+ $3.6700 -12%
1,000+ $3.1300 -25% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max)340ns, 330ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)1125ns, 1125ns (Max)
Current - Output High, Low480mA, 520mA
Current - Peak Output1A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply22V ~ 28V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
Approval AgencyVDE
