SID1102K-TL

In Stock: 939

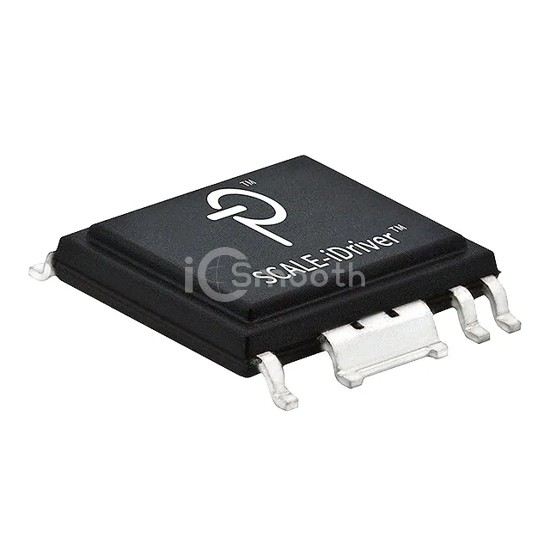

SID1102K-TL - Power Integrations - Isolators - Gate Drivers
REF: SID1102K-TL Power Integrations
SID1102K-TL

Power Integrations

DGTL ISO GATE DRVR

SID1102K-TL is a Isolators - Gate Drivers manufactured by Power Integrations. DGTL ISO GATE DRVR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads, approval agency VDE.

Request a Quote

In Stock: 939

Tiered Pricing USD
1+ $3.3100 —
100+ $2.6500 -20% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation1000Vrms
Common Mode Transient Immunity (Min)100kV/µs
Propagation Delay tpLH / tpHL (Max)350ns, 350ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)29ns, 14ns
Current - Output High, Low5A, 5A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply22V ~ 28V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device PackageeSOP-R16B
Approval AgencyVDE
