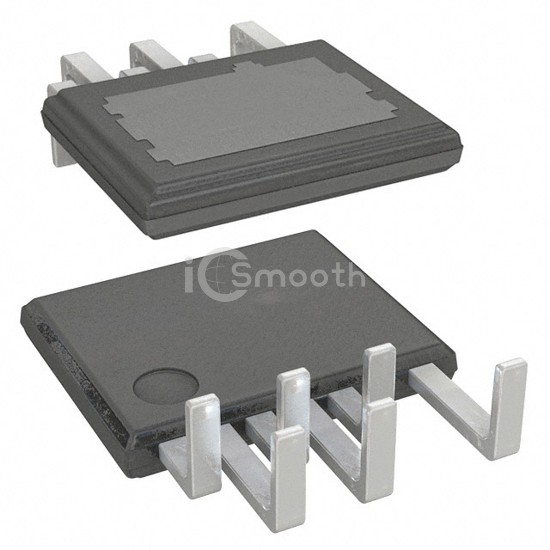

LYT4214L

In Stock: 8,823
LYT4214L - Power Integrations - PMIC - AC DC Converters, Offline Switchers
REF: LYT4214L Power Integrations
LYT4214L

Power Integrations

IC OFFLINE SW MULT TOP 7FESIP

LYT4214L is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SW MULT TOP 7FESIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 7-SSIP, 6 Leads, Exposed Pad, Formed Leads, power (watts) 22 W.

Datasheet Request a Quote

In Stock: 8,823

Specifications

16 parameters
Product StatusObsolete
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown725V
TopologyFlyback, Step-Down (Buck), Step-Up (Boost)
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)-
Duty Cycle99.9%
Frequency - Switching140kHz
Power (Watts)22 W
Fault Protection-
Control Features-
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case7-SSIP, 6 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-7F
Mounting TypeThrough Hole
