LNK6767K

In Stock: 8,242

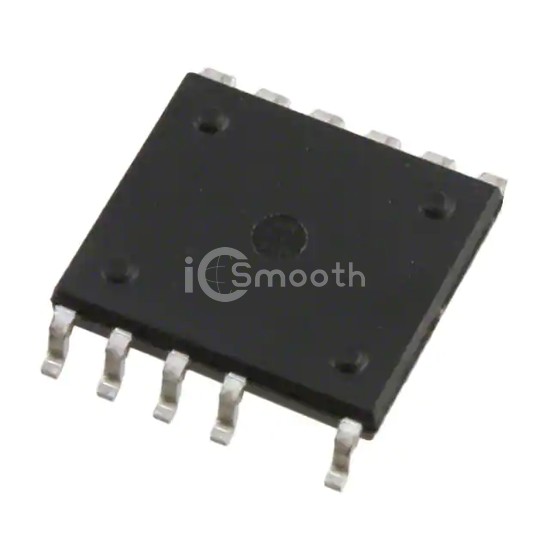

LNK6767K - Power Integrations - PMIC - AC DC Converters, Offline Switchers
REF: LNK6767K Power Integrations
LNK6767K

Power Integrations

IC OFFLINE SWITCH FLYBACK 12ESOP

LNK6767K is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 12ESOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad, power (watts) 59 W.

Datasheet Request a Quote

In Stock: 8,242

Specifications

16 parameters
Product StatusDiscontinued at Digi-Key
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown650V
TopologyFlyback
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)-
Duty Cycle64%
Frequency - Switching120kHz ~ 136kHz
Power (Watts)59 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features-
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package12-ESOP
Mounting TypeSurface Mount
