Name: LNK6766K-TL
Brand: Power Integrations
SKU: LNK6766K-TL
Price: 0.70 USD
Availability: InStock

REF: LNK6766K-TL Power Integrations

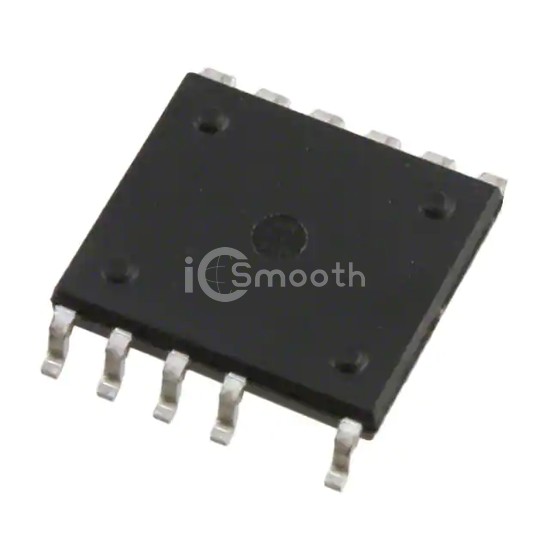

LNK6766K-TL

IC OFFLINE SWITCH FLYBACK 12ESOP

LNK6766K-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 12ESOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad, power (watts) 48 W.

Datasheet Request a Quote

In Stock: 2,289

Tiered Pricing USD

1,000+ $0.7000 —

10,000+ $0.6000 -14% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	650V
Topology	Flyback
Voltage - Start Up	-
Voltage - Supply (Vcc/Vdd)	-
Duty Cycle	64%

Frequency - Switching	120kHz ~ 136kHz
Power (Watts)	48 W
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features	-
Operating Temperature	-40°C ~ 150°C (TJ)
Package / Case	12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package	12-ESOP
Mounting Type	Surface Mount
