LCS703HG

In Stock: 4,318

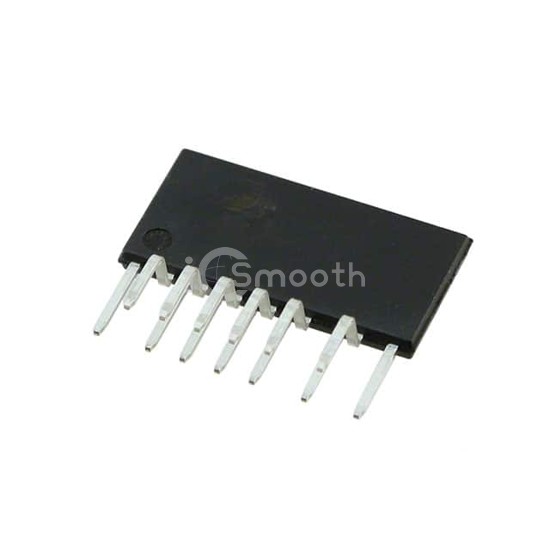

LCS703HG - Power Integrations - PMIC - Full, Half-Bridge Drivers
REF: LCS703HG Power Integrations
LCS703HG

Power Integrations

IC LLC CTRL MFET 275W ESIP16C

LCS703HG is a PMIC - Full, Half-Bridge Drivers manufactured by Power Integrations. IC LLC CTRL MFET 275W ESIP16C. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 11.4V ~ 15V, package / case 16-SSIP, 13 Leads, Exposed Pad, Formed Leads.

Datasheet Request a Quote

In Stock: 4,318

Tiered Pricing USD
1+ $5.6000 —
100+ $4.6200 -18%
1,000+ $3.9200 -30% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsGeneral Purpose
InterfaceOn/Off
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)600mOhm
Current - Output / Channel-
Current - Peak Output12.9A
Voltage - Supply11.4V ~ 15V
Voltage - Load11.4V ~ 15V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesAuto Restart, Slew Rate Controlled
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeThrough Hole
Package / Case16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-16J
