BRD1160C-TL

In Stock: 6,763

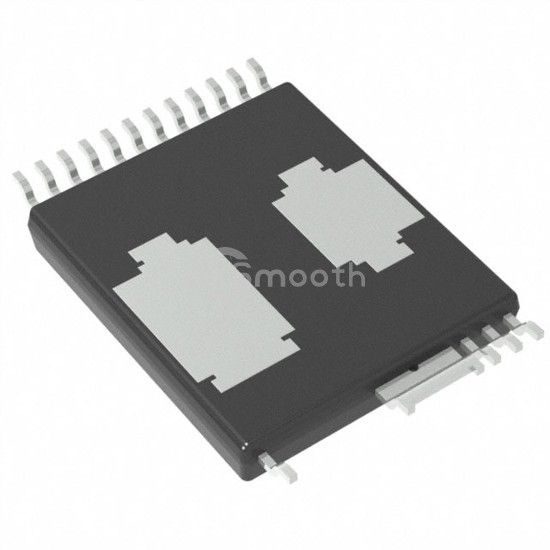

BRD1160C-TL - Power Integrations - PMIC - Full, Half-Bridge Drivers
REF: BRD1160C-TL Power Integrations
BRD1160C-TL

Power Integrations

BRIDGESWITCH 1.0 A

BRD1160C-TL is a PMIC - Full, Half-Bridge Drivers manufactured by Power Integrations. BRIDGESWITCH 1.0 A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 50V, package / case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads.

Datasheet Request a Quote

In Stock: 6,763

Tiered Pricing USD
1+ $1.0800 —
100+ $0.8930 -17%
1,000+ $0.7600 -30% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsDC Motors, General Purpose
InterfaceAnalog, Logic, PWM
Load TypeCapacitive and Resistive
Technology-
Rds On (Typ)6.84Ohm LS, 6.84Ohm HS
Current - Output / Channel1A
Current - Peak Output-
Voltage - Supply50V
Voltage - Load-
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
Mounting TypeSurface Mount
Package / Case24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
Supplier Device PackageInSOP-24C
