2SC0435T2G1-17

In Stock: 5,027

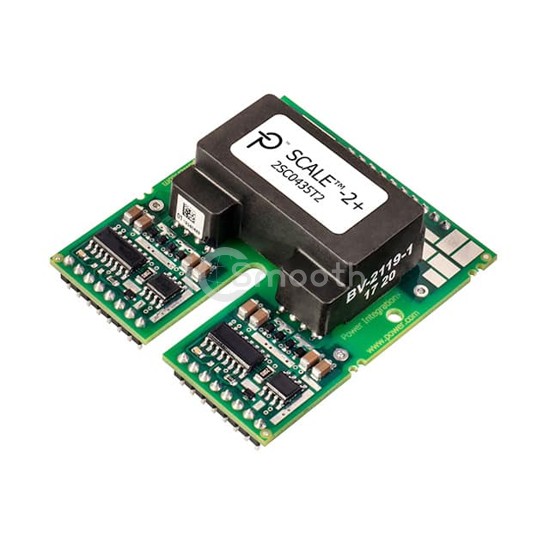

2SC0435T2G1-17 - Power Integrations - PMIC - Gate Drivers
REF: 2SC0435T2G1-17 Power Integrations
2SC0435T2G1-17

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

2SC0435T2G1-17 is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HI/LOW SIDE MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 14.5V ~ 15.5V, package / case Module.

Datasheet Request a Quote

In Stock: 5,027

Tiered Pricing USD
1+ $99.7100 —
10+ $91.7300 -8%
40+ $79.7603 -20%
100+ $63.8100 -36% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply14.5V ~ 15.5V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)35A, 35A
Input Type-
High Side Voltage - Max (Bootstrap)1700 V
Rise / Fall Time (Typ)20ns, 20ns
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseModule
Supplier Device PackageModule
