2SC0115T2A0-12

In Stock: 109

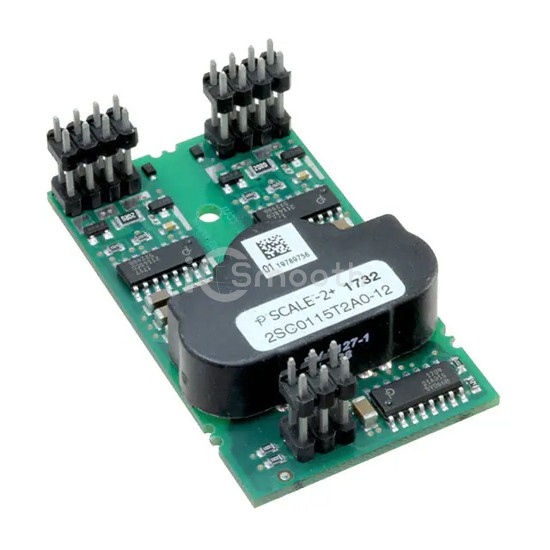

2SC0115T2A0-12 - Power Integrations - PMIC - Gate Drivers
REF: 2SC0115T2A0-12 Power Integrations
2SC0115T2A0-12

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

2SC0115T2A0-12 is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HI/LOW SIDE MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 14.5V ~ 15.5V, package / case Module.

Datasheet Request a Quote

In Stock: 109

Tiered Pricing USD
1+ $35.8600 —
10+ $32.9900 -8%
40+ $27.2700 -24%
100+ $22.9500 -36%
400+ $22.4125 -38% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT
Voltage - Supply14.5V ~ 15.5V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)15A, 15A
Input Type-
High Side Voltage - Max (Bootstrap)1200 V
Rise / Fall Time (Typ)6ns, 12ns
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Package / CaseModule
Supplier Device PackageModule
