1SD1548AI UL

In Stock: 6,114

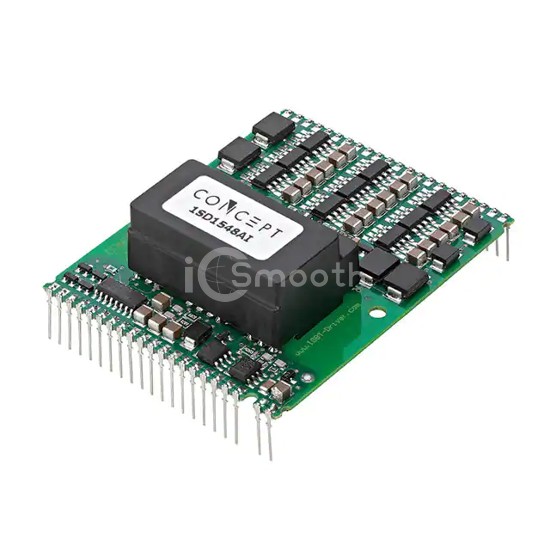

1SD1548AI UL - Power Integrations - PMIC - Gate Drivers
REF: 1SD1548AI UL Power Integrations
1SD1548AI UL

Power Integrations

IC GATE DRVR HALF-BRIDGE MODULE

1SD1548AI UL is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HALF-BRIDGE MODULE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 15V, package / case Module.

Datasheet Request a Quote

In Stock: 6,114

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type-
Number of Drivers1
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply15V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)48A, 48A
Input Type-
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / CaseModule
Supplier Device PackageModule
