1SC2060P2A0-17

In Stock: 1,012

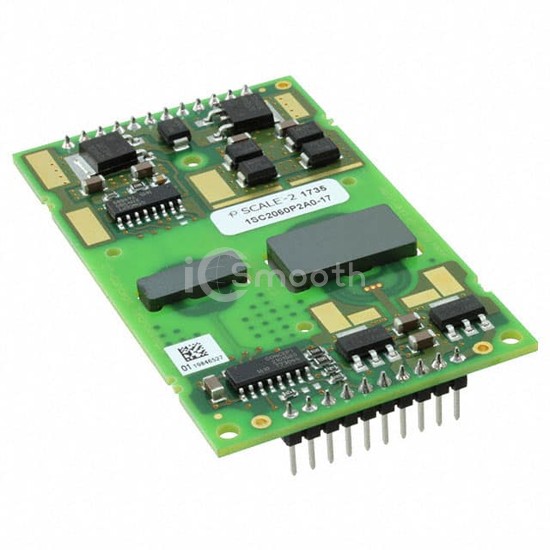

1SC2060P2A0-17 - Power Integrations - PMIC - Gate Drivers
REF: 1SC2060P2A0-17 Power Integrations
1SC2060P2A0-17

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

1SC2060P2A0-17 is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HI/LOW SIDE MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 14.5V ~ 15.5V, package / case Module.

Datasheet Request a Quote

In Stock: 1,012

Tiered Pricing USD
1+ $152.8800 —
10+ $134.5300 -12%
40+ $116.9905 -23%
100+ $91.0402 -40% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply14.5V ~ 15.5V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)60A, 60A
Input Type-
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)10ns, 15ns
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseModule
Supplier Device PackageModule
