PE42822A-Z

In Stock: 1,865

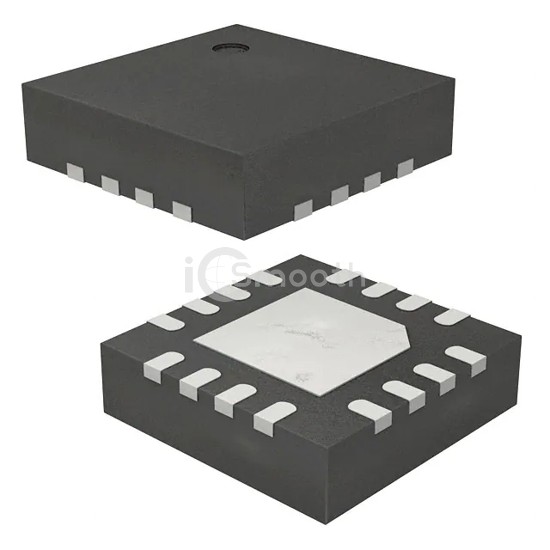

PE42822A-Z - pSemi - RF Switches
REF: PE42822A-Z pSemi
PE42822A-Z

pSemi

IC RF SWITCH SPDT 3.8GHZ 16QFN

PE42822A-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 3.8GHZ 16QFN. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 2.3V ~ 5.5V, package / case 16-VFQFN Exposed Pad, frequency range 700MHz ~ 3.8GHz.

Datasheet Request a Quote

In Stock: 1,865

Specifications

16 parameters
Product StatusActive
RF TypeCellular
TopologyAbsorptive
CircuitSPDT
Frequency Range700MHz ~ 3.8GHz
Isolation44dB
Insertion Loss0.8dB
Test Frequency3GHz
P1dB-
IIP365dBm
Features-
Impedance-
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-QFN (3x3)
