PE42820B-X

In Stock: 9,523

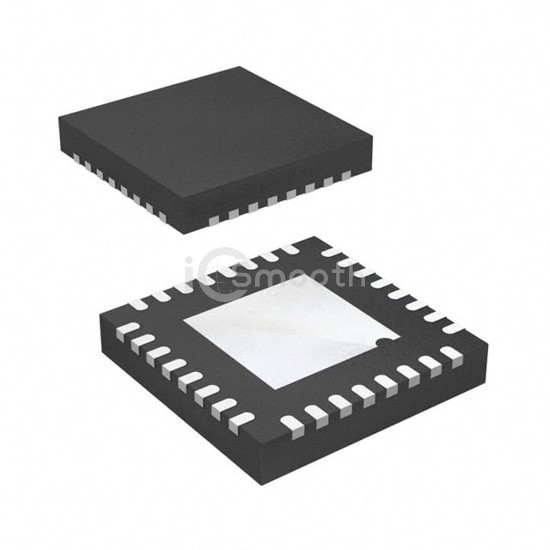

PE42820B-X - pSemi - RF Switches
REF: PE42820B-X pSemi
PE42820B-X

pSemi

IC RF SWITCH SPDT 2.7GHZ 32QFN

PE42820B-X is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 2.7GHZ 32QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 32-VFQFN Exposed Pad, frequency range 30MHz ~ 2.7GHz.

Datasheet Request a Quote

In Stock: 9,523

Tiered Pricing USD
1+ $32.5000 —
101+ $22.7201 -30% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range30MHz ~ 2.7GHz
Isolation24dB
Insertion Loss0.7dB
Test Frequency2.7GHz
P1dB-
IIP381dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
