PE42750MLAA-Z

In Stock: 20,674

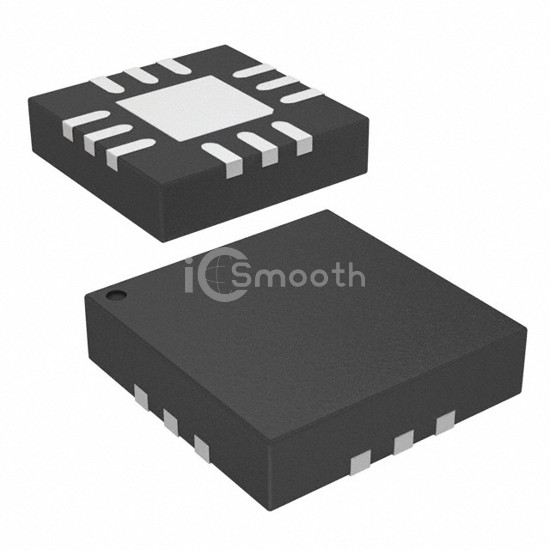

PE42750MLAA-Z - pSemi - RF Switches
REF: PE42750MLAA-Z pSemi
PE42750MLAA-Z

pSemi

IC RF SWITCH SPDT 2.2GHZ 12QFN

PE42750MLAA-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 2.2GHZ 12QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 3.63V, package / case 12-WFQFN Exposed Pad, frequency range 5MHz ~ 2.2GHz.

Datasheet Request a Quote

In Stock: 20,674

Tiered Pricing USD
1+ $0.7300 —
101+ $0.6700 -8%
1,000+ $0.6100 -16% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCATV
TopologyAbsorptive
CircuitSPDT
Frequency Range5MHz ~ 2.2GHz
Isolation57dB
Insertion Loss1.7dB
Test Frequency2.2GHz
P1dB23.5dBm
IIP347.5dBm
Features-
Impedance75Ohm
Voltage - Supply2.7V ~ 3.63V
Operating Temperature-40°C ~ 85°C
Package / Case12-WFQFN Exposed Pad
Supplier Device Package12-QFN (3x3)
