PE42520C-Z

In Stock: 1,834

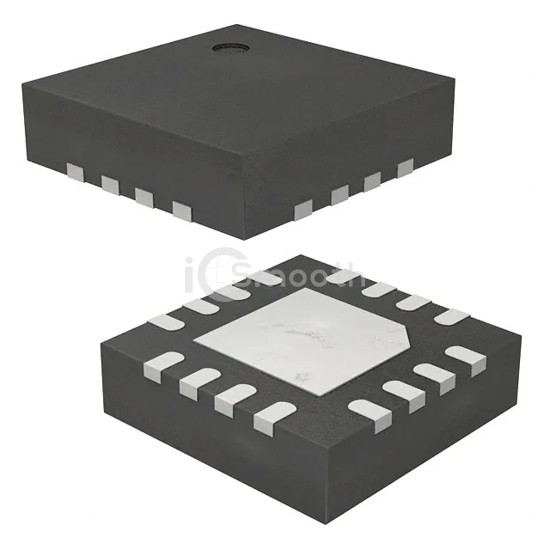

PE42520C-Z - pSemi - RF Switches
REF: PE42520C-Z pSemi
PE42520C-Z

pSemi

IC RF SWITCH SPDT 13GHZ 16QFN

PE42520C-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 13GHZ 16QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 16-VFQFN Exposed Pad, frequency range 9kHz ~ 13GHz.

Datasheet Request a Quote

In Stock: 1,834

Tiered Pricing USD
1+ $9.4300 —
101+ $8.5800 -9%
1,000+ $7.8000 -17% BEST

Specifications

16 parameters
Product StatusActive
RF TypeATE
TopologyAbsorptive
CircuitSPDT
Frequency Range9kHz ~ 13GHz
Isolation18dB
Insertion Loss2dB
Test Frequency13GHz
P1dB-
IIP366dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-QFN (3x3)
