PE42424A-Z

In Stock: 22,118

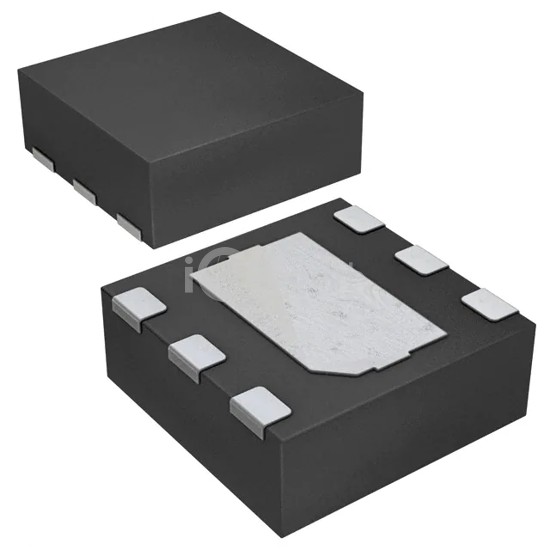

PE42424A-Z - pSemi - RF Switches
REF: PE42424A-Z pSemi
PE42424A-Z

pSemi

IC RF SWITCH SPDT 6GHZ 6DFN

PE42424A-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 6GHZ 6DFN. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 2.3V ~ 5.5V, package / case 6-UFDFN Exposed Pad, frequency range 100MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 22,118

Tiered Pricing USD
1+ $1.7000 —
101+ $1.1800 -31%
1,000+ $0.7900 -54% BEST

Specifications

16 parameters
Product StatusActive
RF Type802.11a/b/g/n/ac
TopologyReflective
CircuitSPDT
Frequency Range100MHz ~ 6GHz
Isolation48dB
Insertion Loss0.8dB
Test Frequency2.4GHz, 2.5GHz
P1dB41dBm
IIP361dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Package / Case6-UFDFN Exposed Pad
Supplier Device Package6-DFN (1.5x1.5)
