PE42422MLAA-Z

In Stock: 9,561

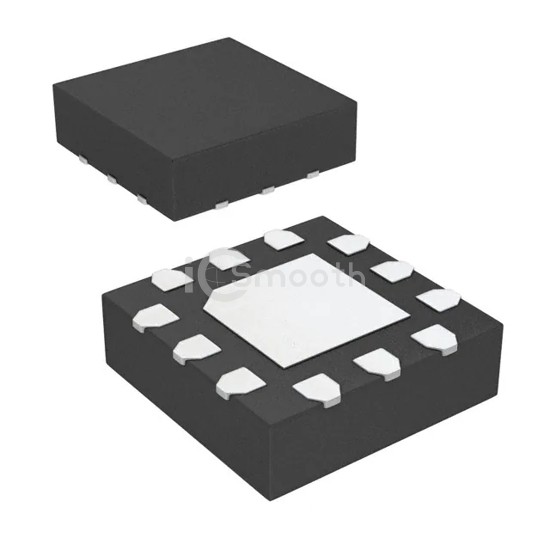

PE42422MLAA-Z - pSemi - RF Switches
REF: PE42422MLAA-Z pSemi
PE42422MLAA-Z

pSemi

IC RF SWITCH SPDT 6GHZ 12QFN

PE42422MLAA-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 6GHZ 12QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 12-UFQFN Exposed Pad, frequency range 100MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 9,561

Tiered Pricing USD
1+ $1.6100 —
101+ $1.1200 -30%
1,000+ $0.7600 -53% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range100MHz ~ 6GHz
Isolation17dB
Insertion Loss0.9dB
Test Frequency6GHz
P1dB-
IIP370dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case12-UFQFN Exposed Pad
Supplier Device Package12-QFN (2x2)
