PE42420LGBB-Z

In Stock: 9,506

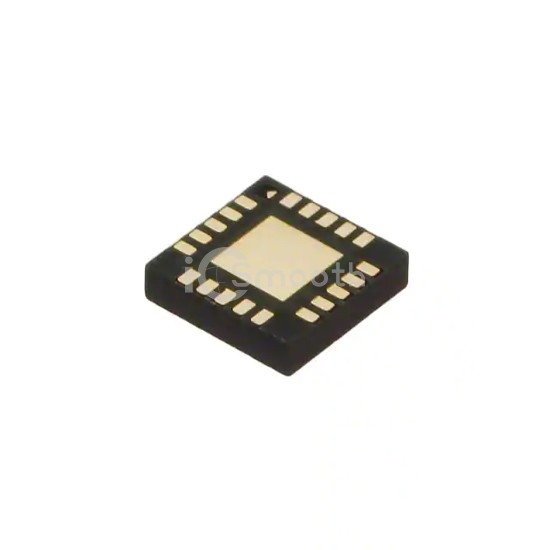

PE42420LGBB-Z - pSemi - RF Switches
REF: PE42420LGBB-Z pSemi
PE42420LGBB-Z

pSemi

IC RF SWITCH SPDT 6GHZ 20LGA

PE42420LGBB-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 6GHZ 20LGA. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 5.5V, package / case 20-TFLGA Exposed Pad, frequency range 100MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 9,506

Specifications

16 parameters
Product StatusDiscontinued at Digi-Key
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSPDT
Frequency Range100MHz ~ 6GHz
Isolation50dB
Insertion Loss1.6dB
Test Frequency6GHz
P1dB33dBm (min)
IIP365dBm
Features-
Impedance50Ohm
Voltage - Supply2.7V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case20-TFLGA Exposed Pad
Supplier Device Package20-LGA (4x4)
