PE42420F-Z

In Stock: 24,520

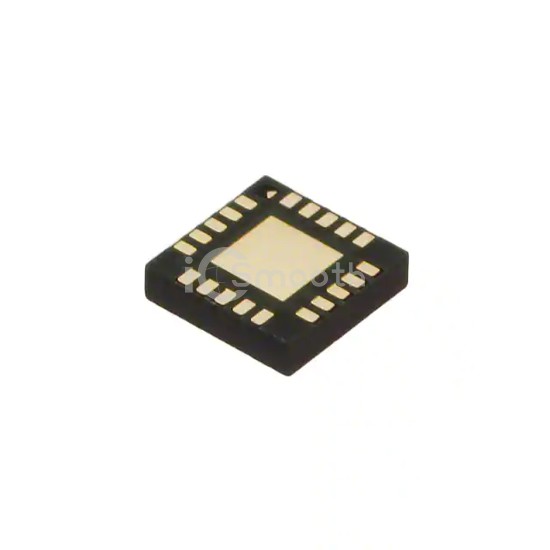

PE42420F-Z - pSemi - RF Switches
REF: PE42420F-Z pSemi
PE42420F-Z

pSemi

IC RF SWITCH SPDT 6GHZ 20LGA

PE42420F-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 6GHZ 20LGA. Key specifications: operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 20-TFLGA Exposed Pad, frequency range 20MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 24,520

Tiered Pricing USD
1+ $2.3200 —
101+ $2.1100 -9%
1,000+ $2.0020 -14% BEST

Specifications

16 parameters
Product StatusActive
RF Type-
TopologyAbsorptive
CircuitSPDT
Frequency Range20MHz ~ 6GHz
Isolation50dB
Insertion Loss1.6dB
Test Frequency6GHz
P1dB-
IIP365dBm
Features-
Impedance50Ohm
Voltage - Supply2.7V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Package / Case20-TFLGA Exposed Pad
Supplier Device Package20-LGA (4x4)
